Forward Projection (simple draft demo)#
[1]:
import numpy as np
import matplotlib.pyplot as plt
import easyidp as idp
[2]:
fb = idp.data.ForestBirds()
dom = idp.GeoTiff(fb.metashape.dom)
dsm = idp.GeoTiff(fb.metashape.dsm)
dsm.header["crs"]
Could not find prefered [GTCitationGeoKey, PCSCItationGeoKey], but find [GeogCitationGeoKey]=WGS 84 instead for Coordinate Reference System (CRS)
Could not find prefered [GTCitationGeoKey, PCSCItationGeoKey], but find [GeogCitationGeoKey]=WGS 84 instead for Coordinate Reference System (CRS)
[2]:
<Geographic 2D CRS: EPSG:4326>
Name: WGS 84
Axis Info [ellipsoidal]:
- Lat[north]: Geodetic latitude (degree)
- Lon[east]: Geodetic longitude (degree)
Area of Use:
- name: World.
- bounds: (-180.0, -90.0, 180.0, 90.0)
Datum: World Geodetic System 1984 ensemble
- Ellipsoid: WGS 84
- Prime Meridian: Greenwich
Then check the shp columns, name using [id] as the key of ROI
[3]:
idp.shp.show_shp_fields(fb.shp)
[-1] [0] id [1] left [2] top [3] right [4] bottom
------ -------- ------------- ------------ ------------------ ------------
0 23 -80.839574347 25.783543637 -80.83947434699999 25.783443637
1 24 -80.839574347 25.783443637 -80.83947434699999 25.783343637
2 25 -80.839574347 25.783343637 -80.83947434699999 25.783243637
... ... ... ... ... ...
175 244 -80.838374347 25.783043637 -80.838274347 25.782943637
176 245 -80.838374347 25.782943637 -80.838274347 25.782843637
177 246 -80.838374347 25.782843637 -80.838274347 25.782743637
[4]:
grid = idp.ROI(fb.shp, name_field="id")
grid.get_z_from_dsm(fb.metashape.dsm)
grid.keys()
[shp][proj] Use projection [WGS 84] for loaded shapefile [Hidden_Little_grid.shp]
Read shapefile [Hidden_Little_grid.shp]: 100%|██████████| 178/178 [00:00<00:00, 1563.68it/s]
Could not find prefered [GTCitationGeoKey, PCSCItationGeoKey], but find [GeogCitationGeoKey]=WGS 84 instead for Coordinate Reference System (CRS)
Read z values of roi from DSM [Hidden_Little_03_24_2022_DEM.tif]: 100%|██████████| 178/178 [00:02<00:00, 71.40it/s]
[4]:
dict_keys(['23', '24', '25', '26', '27', '28', '29', '30', '31', '32', '33', '38', '39', '40', '41', '42', '43', '44', '45', '46', '47', '48', '49', '50', '51', '52', '56', '57', '58', '59', '60', '61', '62', '63', '64', '65', '66', '67', '68', '69', '70', '74', '75', '76', '77', '78', '79', '80', '81', '82', '83', '84', '85', '86', '87', '88', '89', '92', '93', '94', '95', '96', '97', '98', '99', '100', '101', '102', '103', '104', '105', '106', '107', '110', '111', '112', '113', '114', '115', '116', '117', '118', '119', '120', '121', '122', '123', '124', '125', '128', '129', '130', '131', '132', '133', '134', '135', '136', '137', '138', '139', '140', '141', '142', '143', '146', '147', '148', '149', '150', '151', '152', '153', '154', '155', '156', '157', '158', '159', '160', '161', '164', '165', '166', '167', '168', '169', '170', '171', '172', '173', '174', '175', '176', '177', '178', '184', '185', '186', '187', '188', '189', '190', '191', '192', '193', '194', '195', '196', '202', '203', '204', '205', '206', '207', '208', '209', '210', '211', '212', '213', '220', '221', '222', '223', '224', '225', '226', '227', '228', '239', '240', '241', '242', '243', '244', '245', '246'])
[5]:
grid["23"]
[5]:
array([[-80.83957435, 25.78354364, -37.19462204],
[-80.83947435, 25.78354364, -37.19462204],
[-80.83947435, 25.78344364, -37.19462204],
[-80.83957435, 25.78344364, -37.19462204],
[-80.83957435, 25.78354364, -37.19462204]])
Check the results of DOM grid
[6]:
dom_parts = grid.crop(dom)
dom_parts.keys()
Crop roi from geotiff [Hidden_Little_03_24_2022.tiff]: 100%|██████████| 178/178 [01:20<00:00, 2.20it/s]
[6]:
dict_keys(['23', '24', '25', '26', '27', '28', '29', '30', '31', '32', '33', '38', '39', '40', '41', '42', '43', '44', '45', '46', '47', '48', '49', '50', '51', '52', '56', '57', '58', '59', '60', '61', '62', '63', '64', '65', '66', '67', '68', '69', '70', '74', '75', '76', '77', '78', '79', '80', '81', '82', '83', '84', '85', '86', '87', '88', '89', '92', '93', '94', '95', '96', '97', '98', '99', '100', '101', '102', '103', '104', '105', '106', '107', '110', '111', '112', '113', '114', '115', '116', '117', '118', '119', '120', '121', '122', '123', '124', '125', '128', '129', '130', '131', '132', '133', '134', '135', '136', '137', '138', '139', '140', '141', '142', '143', '146', '147', '148', '149', '150', '151', '152', '153', '154', '155', '156', '157', '158', '159', '160', '161', '164', '165', '166', '167', '168', '169', '170', '171', '172', '173', '174', '175', '176', '177', '178', '184', '185', '186', '187', '188', '189', '190', '191', '192', '193', '194', '195', '196', '202', '203', '204', '205', '206', '207', '208', '209', '210', '211', '212', '213', '220', '221', '222', '223', '224', '225', '226', '227', '228', '239', '240', '241', '242', '243', '244', '245', '246'])
[7]:
plt.imshow(dom_parts["23"])
[7]:
<matplotlib.image.AxesImage at 0x1b6d6717b20>
Check by QGIS:
backward projection to raw images
[8]:
ms = idp.Metashape(
fb.metashape.project, chunk_id=0,
raw_img_folder=fb.data_dir / "Hidden_Little_03_24_2022")
[9]:
ms._world_crs
[9]:
<Geocentric CRS: +proj=geocent +ellps=WGS84 +datum=WGS84 +type=crs>
Name: unknown
Axis Info [cartesian]:
- X[geocentricX]: Geocentric X (metre)
- Y[geocentricY]: Geocentric Y (metre)
- Z[geocentricZ]: Geocentric Z (metre)
Area of Use:
- undefined
Datum: World Geodetic System 1984
- Ellipsoid: WGS 84
- Prime Meridian: Greenwich
[10]:
grid_raw = ms.back2raw(grid)
grid_raw["136"]
Backward roi to raw images: 100%|██████████| 178/178 [00:00<00:00, 318.80it/s]
[10]:
{'DJI_0149': array([[2155.76274299, 1292.00630554],
[ 931.28560264, 1265.38057764],
[1027.53614317, 48.84011073],
[2202.13457101, 77.25924616],
[2155.76274299, 1292.00630554]]),
'DJI_0150': array([[2122.97474143, 2470.15042821],
[ 854.29237108, 2446.08253122],
[ 957.31234722, 1138.48305458],
[2172.36952834, 1164.85229968],
[2122.97474143, 2470.15042821]]),
'DJI_0151': array([[2102.29461967, 3689.72305177],
[ 785.90342263, 3670.08548398],
[ 894.07845967, 2261.49576956],
[2153.18820651, 2284.03034259],
[2102.29461967, 3689.72305177]]),
'DJI_0164': array([[4424.2693763 , 3391.92746052],
[3140.88487962, 3389.12587973],
[3126.90861361, 2019.1609286 ],
[4354.31777474, 2027.11677147],
[4424.2693763 , 3391.92746052]]),
'DJI_0165': array([[4330.00675909, 2243.13594271],
[3094.20946698, 2234.45696699],
[3083.72318543, 963.19100549],
[4267.32752594, 976.08982466],
[4330.00675909, 2243.13594271]])}
Then find the closest raw image
[11]:
closest_img = ms.sort_img_by_distance(grid_raw, grid, num=1)
closest_img.keys()
Getting photo positions: 100%|██████████| 93/93 [00:00<00:00, 1455.44it/s]
Filter by distance to ROI: 100%|██████████| 178/178 [00:00<00:00, 18719.41it/s]
[11]:
dict_keys(['23', '24', '25', '26', '27', '28', '29', '30', '31', '32', '33', '38', '39', '40', '41', '42', '43', '44', '45', '46', '47', '48', '49', '50', '51', '52', '56', '57', '58', '59', '60', '61', '62', '63', '64', '65', '66', '67', '68', '69', '70', '74', '75', '76', '77', '78', '79', '80', '81', '82', '83', '84', '85', '86', '87', '88', '89', '92', '93', '94', '95', '96', '97', '98', '99', '100', '101', '102', '103', '104', '105', '106', '107', '110', '111', '112', '113', '114', '115', '116', '117', '118', '119', '120', '121', '122', '123', '124', '125', '128', '129', '130', '131', '132', '133', '134', '135', '136', '137', '138', '139', '140', '141', '142', '143', '146', '147', '148', '149', '150', '151', '152', '153', '154', '155', '156', '157', '158', '159', '160', '161', '164', '165', '166', '167', '168', '169', '170', '171', '172', '173', '174', '175', '176', '177', '178', '184', '185', '186', '187', '188', '189', '190', '191', '192', '193', '194', '195', '196', '202', '203', '204', '205', '206', '207', '208', '209', '210', '211', '212', '213', '220', '221', '222', '223', '224', '225', '226', '227', '228', '239', '240', '241', '242', '243', '244', '245', '246'])
[12]:
closest_img['23']
[12]:
{'DJI_0110': array([[4884.68152518, 3095.84285985],
[3702.95435122, 3016.65312445],
[3756.99308865, 1761.90670177],
[4896.57926407, 1836.44369074],
[4884.68152518, 3095.84285985]])}
Check the ROI on the DOM and on the raw respectively.
[13]:
fig, ax = plt.subplots(1, 2, figsize=(10, 6), dpi=300)
# draw roi on dom
buffer = 200 # pixel
## perpare cropped dom in pixel with buffer
grid_coord = idp.geotiff.geo2pixel(grid["136"], dom.header, return_index=True)
dom_xmin, dom_ymin = grid_coord.min(axis=0)
dom_xmax, dom_ymax = grid_coord.max(axis=0)
dom_grid_crop = dom.crop_rectangle(
left = dom_xmin-buffer,
top = dom_ymin-buffer,
w=dom_xmax - dom_xmin + buffer * 2,
h=dom_ymax - dom_ymin + buffer * 2,
is_geo=False # this is pixel coordinate on dom
)
ax[0].imshow(dom_grid_crop)
offset_coord = grid_coord - np.array([dom_xmin-buffer, dom_ymin-buffer])
ax[0].plot(*offset_coord.T, '--r')
# draw roi on raw
photo_name = list(closest_img["136"].keys())[0] # find the cloest image name
photo_path = ms.photos[photo_name].path # -> e:\\Inspire Raw Data\\Hidden_Little\\Hidden_Little_03_24_2022\\DJI_0151.JPG
# I need to replace the photo path here to run
photo_path = photo_path.replace("Inspire Raw Data\\Hidden_Little\\", "easyidp.data\\2022_florida_forestbirds\\")
img_np = plt.imread(photo_path)
img_coord = closest_img["136"][photo_name]
im_xmin, im_ymin = img_coord.min(axis=0)
im_xmax, im_ymax = img_coord.max(axis=0)
ax[1].imshow(img_np)
ax[1].plot(*img_coord.T, '--r')
ax[1].set_xlim(im_xmin-buffer, im_xmax+buffer)
ax[1].set_ylim(im_ymin-buffer, im_ymax+buffer)
ax[1].invert_yaxis()
ax[1].set_title(f"ROI [N1W1] on [DJI_0500]")
plt.show()

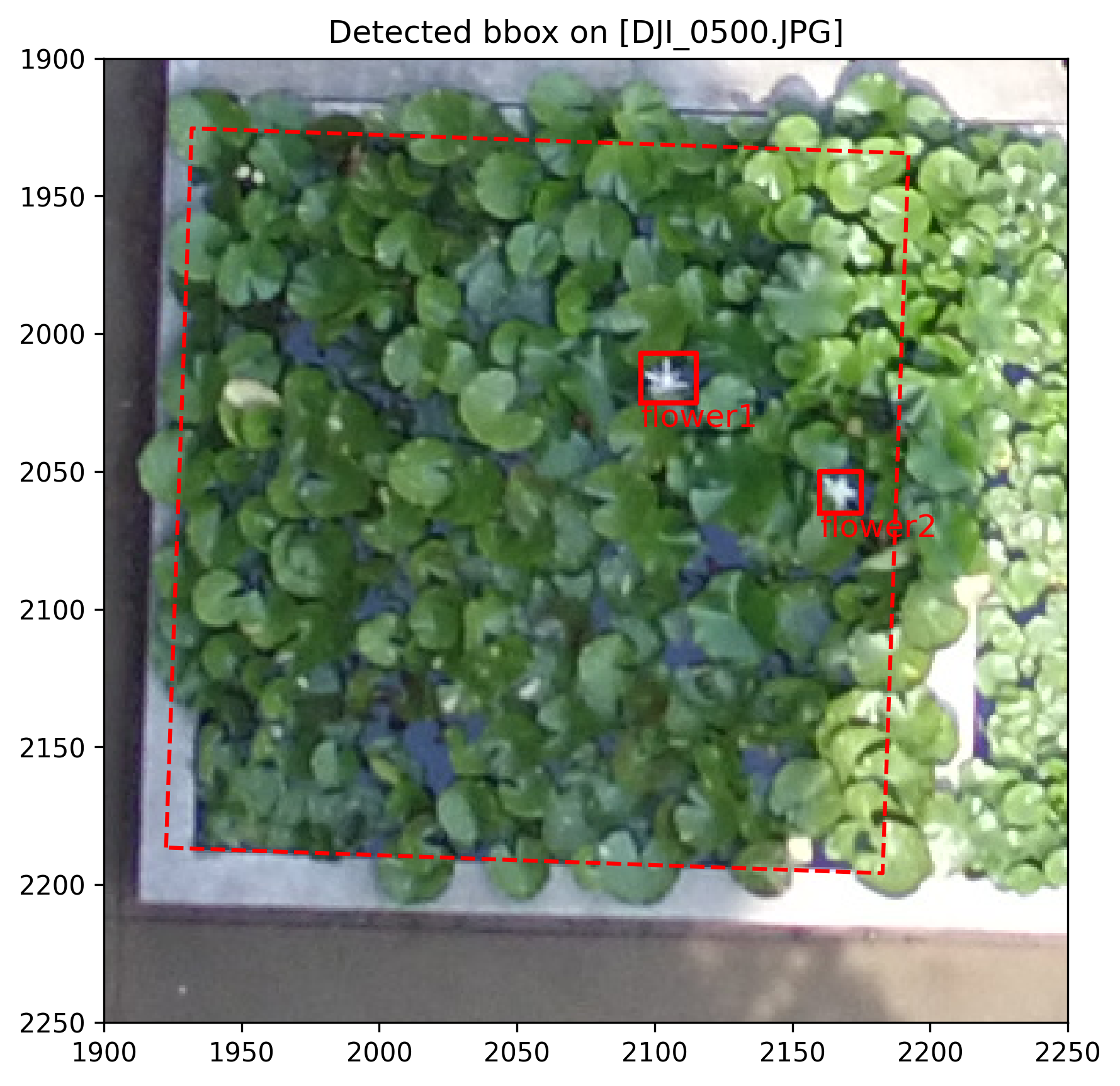

For example, you detect the results on DJI_0500 is
[14]:
bbox = {
"bird1": [1650, 3200, 50, 50], #horizontal, vertical, width, height
"bird2": [1980, 2500, 45, 40]
}

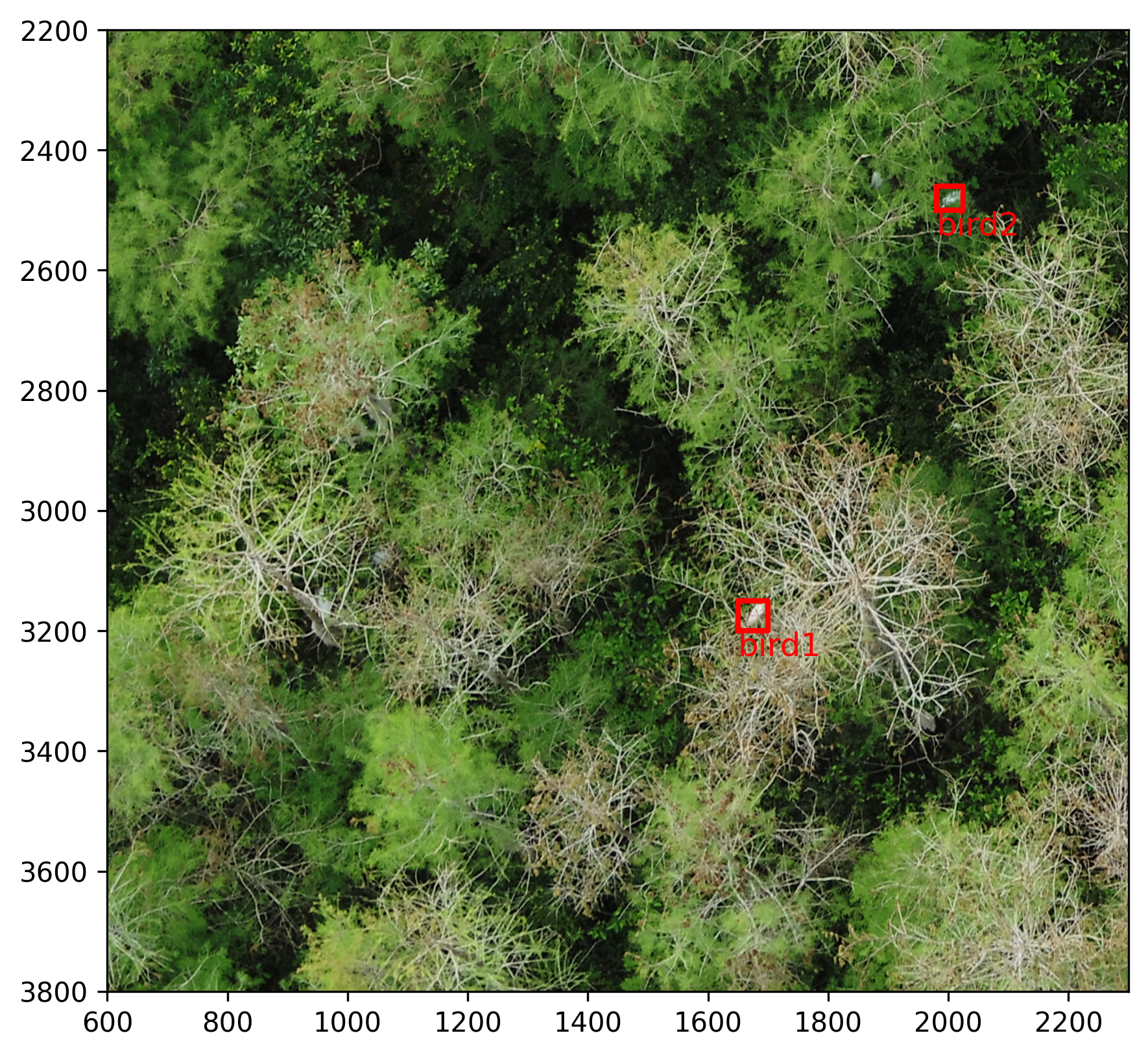

Then check the bbox on the raw:
[15]:
def bbox2coord(bbox):
horizontal, vertical, width, height = bbox
out = np.array([
[horizontal, vertical],
[horizontal, vertical-height],
[horizontal+width, vertical-height],
[horizontal+width, vertical],
[horizontal, vertical],
])
return out
[16]:
fig, ax = plt.subplots(1, 1, figsize=(10, 10), dpi=300)
ax.imshow(img_np)
ax.plot(*img_coord.T, '--r')
# bbox
for k, v in bbox.items():
bb = bbox2coord(v)
ax.plot(*bb.T)
ax.set_xlim(im_xmin-buffer, im_xmax+buffer)
ax.set_ylim(im_ymin-buffer, im_ymax+buffer)
ax.set_title(f"ROI [N1W1] on [DJI_0500]")
plt.show()
Then calculate the inverse transform matrix from raw to DOM:
[17]:
from skimage.transform import ProjectiveTransform
[18]:
print("ROI pixel coords on DOM")
print(grid_coord, "\n")
print("ROI pixel coords on the raw image")
print(img_coord)
ROI pixel coords on DOM
[[ 8017 11386]
[ 9163 11386]
[ 9163 12651]
[ 8017 12651]
[ 8017 11386]]
ROI pixel coords on the raw image
[[2102.29461967 3689.72305177]
[ 785.90342263 3670.08548398]
[ 894.07845967 2261.49576956]
[2153.18820651 2284.03034259]
[2102.29461967 3689.72305177]]
[19]:
pt = ProjectiveTransform()
pt.estimate(grid_coord, img_coord)
dom_bbox_px = {}
dom_bbox_lonlat = {}
for k, v in bbox.items():
bb = bbox2coord(v)
out = pt.inverse(bb)
dom_bbox_px[k] = out
dom_bbox_lonlat[k] = idp.geotiff.pixel2geo(out, dom.header)
[20]:
dom_bbox_px
[20]:
{'bird1': array([[ 8432.87476192, 11807.44010975],
[ 8435.12747078, 11851.79484565],
[ 8390.8677755 , 11852.5077475 ],
[ 8388.68369089, 11808.14610682],
[ 8432.87476192, 11807.44010975]]),
'bird2': array([[ 8166.70950679, 12446.58103703],
[ 8168.21329372, 12483.69281122],
[ 8127.43583926, 12484.42522301],
[ 8125.98384556, 12447.30805059],
[ 8166.70950679, 12446.58103703]])}
[21]:
dom_bbox_lonlat
[21]:
{'bird1': array([[-80.83893812, 25.78301034],
[-80.83893792, 25.78300683],
[-80.83894178, 25.78300678],
[-80.83894197, 25.78301028],
[-80.83893812, 25.78301034]]),
'bird2': array([[-80.83896135, 25.78295982],
[-80.83896122, 25.78295689],
[-80.83896478, 25.78295683],
[-80.83896491, 25.78295976],
[-80.83896135, 25.78295982]])}

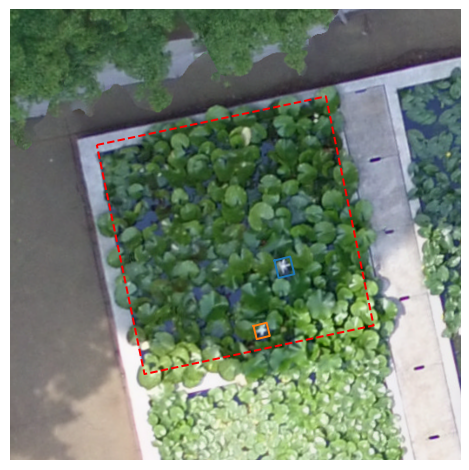

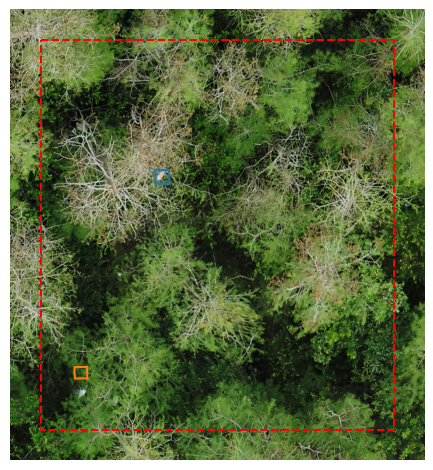

Preview the results on DOM:
[22]:
fig, ax = plt.subplots(1, 1, figsize=(5, 5), dpi=96)
ax.imshow(dom_grid_crop)
offset_coord = grid_coord - np.array([dom_xmin-buffer, dom_ymin-buffer])
ax.plot(*offset_coord.T, '--r')
for k, v in dom_bbox_px.items():
bb = v - np.array([dom_xmin-buffer, dom_ymin-buffer])
ax.plot(*bb.T)
plt.axis('off')
plt.tight_layout()
plt.show
[22]:
<function matplotlib.pyplot.show(close=None, block=None)>
